summary

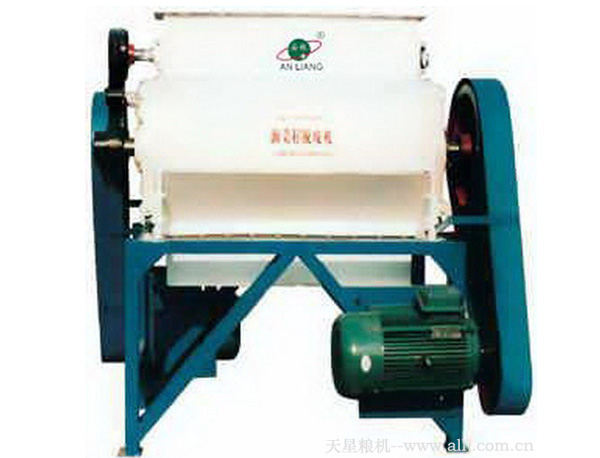

The system is designed for rapeseed peeling, skin and the separation of the design of special equipment. Rapeseed peeling equipment used on the roller on the rapeseed extrusion, cutting, rubbing the principle; skin Ren separation equipment is based on the skin, kernel weight and sieve capacity of different, using the vibration screening and wind separation principle.

Features

1, covers an area of small, large output, simple management, low labor intensity.

2, the use of new materials roller (Austrian ball ductile iron) special treatment, long service life.

3, screening with a special plate sieve, reducing the screen surface damage and replace the screen surface times, improve work efficiency.

4, the wind election with a multi-machine vertical wind selection process, making the wind election efficiency greatly improved.

Technical data:

1, the amount of processing: peeling machine 100 T / 24 hours;

Peel splitter 50 T / 24 hours

2, peeling rate: 90 ~ 98% (water 2 ~ 10%)

3, kernel in the skin rate: 1 ~ 4%.
